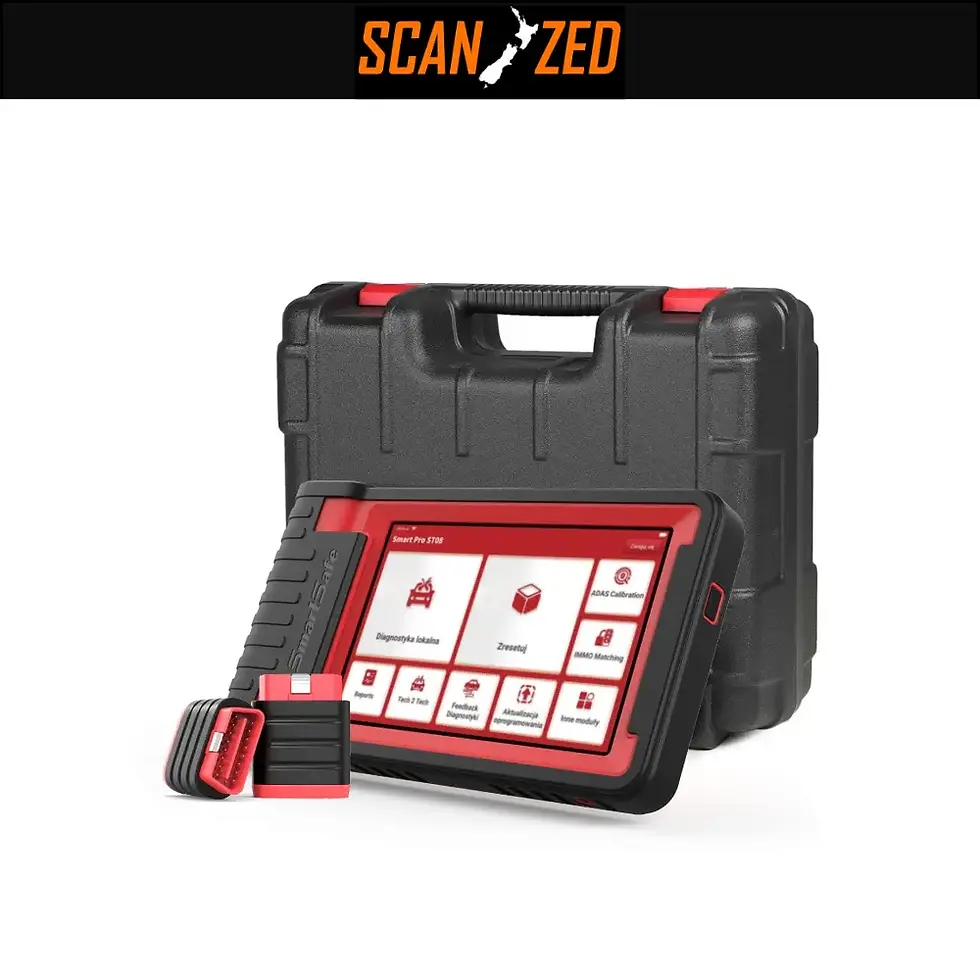

SmartSafe iSmartLink ST08 Diagnostic Tool
$1,580.00 Regular Price
$1,380.00Sale Price
Excluding GST
An innovative SmartSafe design, with 26 maintenance functions, that can perform vehicle
diagnosis as well as being tailored for optional ADAS calibration.
Your budget option for a full diagnostic tool
- Excellent all round vehicle coverage: covering over 100 US, Asian and European brands
- Near OE-Level Diagnostics: Includes all you normal diagnostic functions including special functions like adaptions resets etc for a huge range of makes and models,
- Special functions/adaptions: huge range of special functions/adaptions for many makes and models, supports special functions such as immobilizer and key coding, injector coding, reset brake bleed, reset TPMS, electronic throttle relearn, reset DPF, reset SAS, reset Oil, reset brakes, reset BMS etc for a huge range of vehicles
- Active Test: control car functions directly from the tablet to activate or test components on demand, without using the vehicle’s own controls.
- Live data: Numerical and graphing functions and also searchable
- Maintenance Service: Oil Reset • EPB Reset • SAS Service • ABS Bleeding • TPMS Reset • Gear Learning • IMMO Service • Injector Coding • BMS Service • DPF Regeneration • Throttle Matching • Gearbox Matching • AFS Reset • Sunroof Initialization • Suspension Calibration • EGR Adaption, etc, 26 functions available in total, and still expanding.
- Online Coding: ST08 supports online coding for BENZ, BMW, PORSCHE, VW, AUDI, SEAT for some systems and models. This helps to match and code new ECUs after a replacement, or to unlock the hidden functions (also know as Retrofits and Conversions) bringing more possibilities to your car. (for coding it does a huge range of systems and models in the above brands but we don’t claim all)
- AutoScan: In many cases all you have to do is select the brand and then the tool will auto id the rest of the vehicle details
- SGW security gate way: Optional FCA SGW yearly subscription provides SGW unlock for FCA vehicles (Abarth, Chrysler, Dodge, Jeep, Alfa Romeo, Maserati, Ram trucks, Lancia and Fiat)
Optional Renault SGW token activations provides SGW unlock for Renault and Dacia
VAG group SGW unlock available in conjunction with 3rd party providers on pay as needed basis (full VAG SGW unlock coming soon)
SGW unlock for other brands coming soon - Compatible with: SmartSafe/Launch ADAS calibration equipment which can be found here
- Compatible with: SmartSafe/Launch CAT-601 ATF machine and also the Immo G3 programming tool
- Printing/share: Pint diagnostical reports via WIFI to a WIFI printer
Tool:
- CPU: 4Core 1.8GHz
- System: Android 10
- Memory: 4 GB
- Storage: 64 GB
- Display: 8 inch
- Resolution: 1280*800
- Battery capacity: 6300mAh/7.6V
- Camera: 8MP
- Wi-Fi: 2.4GHz/5GHz
- Working temperature: 0~50℃
- Storage temperature: -10~60℃
VCI:
- Working voltage: 12V
- Working current: ≤60 mA
- Input voltage: 9~18V DC
- Communication: BT, USB
- Working temperature: 0-50℃
- Storage temperature: -10~60℃
- Tablet
- VCI Dongle
- OBD II Extension Cable
- Data Cable (Type A-Mini B)
- Charging Cable (Type-C)
- Power Adaptor
- Password Envelope
- Immo G3 programming tool
- FCA SGW pass
- Renault/Dacia SGW pass
- FCA 12+8 Pin Bypass Cable
- ADAS software activation card (this card comes with all the smartsafe ADAS kits also)
- HaynesPro WorkshopData
