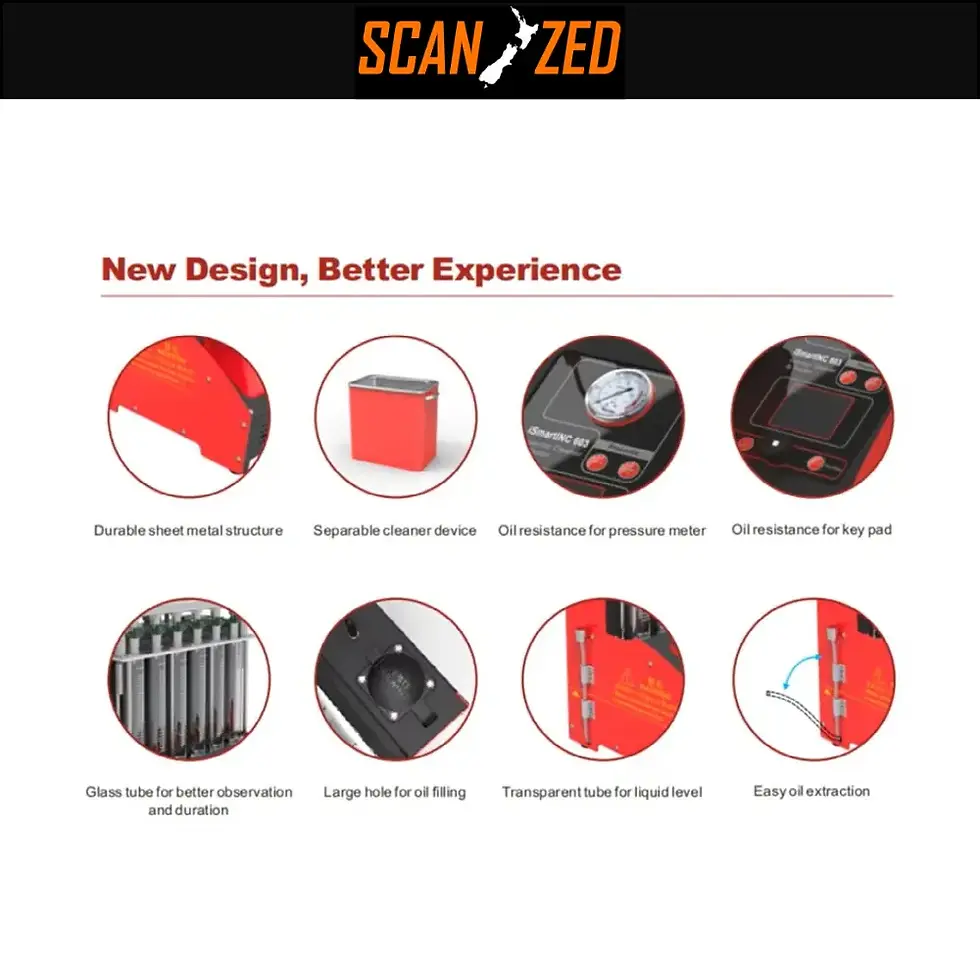

SmartSafe CNC603 Injector Cleaner & Tester

• Utilizing ultrasonic intensive cleaning technology, it can thoroughly eliminate carbon buildup and filter screen deposits from the fuel injectors.

• Utilizing microcomputer automatic control technology, it can enable automatic control of the cleaning and testing process, and real-time monitoring of the key performance of the fuel injectors.

• Equipped with various non-dismantle cleaning connectors, it can perform non-dismantle cleaning and maintenance for multiple vehicle models.

• By simulating engine operating conditions, it comprehensively assesses various aspects of the fuel injector's performance.

• Ultrasonic Cleaning: Capable of simultaneously ultrasonic cleaning multiple injectors, effectively removing carbon buildup.

• Uniformity/Spray Testing: Detects the uniformity of fuel injection quantity for each injector and allows comprehensive observation of the injector spray pattern using background lighting.

• Sealing Test: Tests the sealing and leakage of injectors under system pressure.

• Fuel Injection Quantity Detection: Measures the fuel injection quantity of injectors under a constant 15-second injection condition.

• Automatic Cleaning and Testing: Under specific working parameters, realistically simulates injector testing under various conditions.

• Reverse Flush: For the uniformity/spray testing item, performs a reverse flush using a reverse flush adapter to remove internal injector contaminants and residues attached to the filter screen.

• Non-Dismantle Cleaning: Equipped with various non-dismantle cleaning adapters, allowing non-dismantle cleaning and maintenance for multiple vehicle models.

• Various Support:
  Support for Audi, for Australia Ford, for Benz,for BMW, for Brilliance, for Chevrolet, for Chevy, for Chrysler, for Citroen, for Dacia, for Dadi, for Daewo, for Daihatsu, for Demo, for Fiat, for Ford, for GM, for Holden, for Honda, for Hyundai,for Isuzu, for Jaguar,for Kia,for Lancia,for Land Rover,for Mahindra,for Maruti,for Mazda,for Mitsubish,for Nissan,for Opel,for Peugeot,for Porsche,for Renault,for Romeo,for Rover,for Saab,for Seat,for Skoda,for Smart,for Subaru,for Suzuki,for Tata,for Toyota,for Volvo,for VW,for Yamaha.

1. Clean injector's outside with cleaning liquid before opening the machine .Putting injectors in ultrasonic bathtub after the outside of injector is free of dirt. The cleaning fluid does not exceed the connection port of the pulse line.

2. Turn on ultrasonic system allowing the ultrasonic energy to dislodge any particles build-up inside the injectors. After cleaning, the remaining cleaning fluid can be recycled.

3. Fixed injectors on main machine, testing injectors for resistance, shorts, and current draw. The test liquid can be added to the half of the glass tube.

4. Performing leak test, spray pattern, and flow rate testing on flow bench. The injectors are now returned to the flow bench for retesting of all functions.

45.8 x 43.3 x 53.7mm

18.5kg
