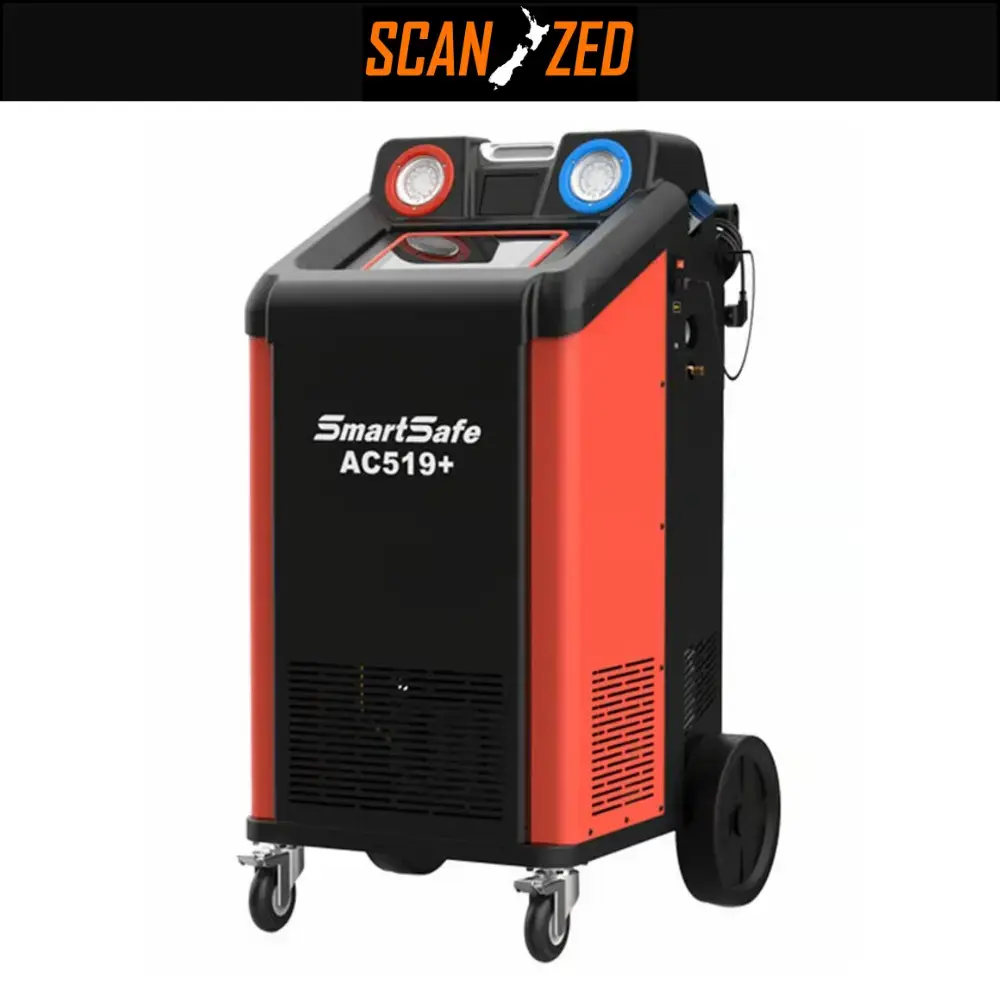

SmartSafe AC519+ A/C Service Station. R134A or R1234YF
AC519+ is a fully automatic intelligent automobile air-conditioning maintenance equipment suitable for fuel vehicles, pure electric vehicles and hybrid vehicles. It integrates functions such as disassembly-free cleaning, refrigerant recovery, filling, vacuuming, etc. It can effectively improve problems such as poor air-conditioning cooling effect, heavy compressor load, etc. Supports 2 refrigerants: R134A or R1234YF
- Equipped with automobile refrigerant model database, the database is updated free of charge
- Sitable for fuel vehicles, electric vehicles, hybrid vehicles and commercial vehicles
- Supports two refrigerants: R134A OR R1234YF
- Support filling of PAG refrigeration oil, POE refrigeration oil and UV detection fluid
- The vehicle air conditioning pipeline can be leak tested and the leak point can be located by adding UV detection liquid
- 128L/min dual-stage vacuum capacity, significantly boosts work efficiency
- The automatic mode can complete operations such as cleaning, recycling, vacuuming, filling refrigeration oil, and refrigerant with one click. Each function can also be executed independently
- Built-in Android system, supports ST13 terminal remote control
What Can Be Solved in Your Shop.
Air-conditioning pipeline cleaning
Clean the air-conditioning pipelines, remove sludge, powder and other impurities inside the pipelines, replace the refrigeration oil more thoroughly, improve compressor lubrication, and improve the refrigeration performance of the air-conditioning system.
Refrigerant recovery
The refrigerant in the automobile air conditioning system is purified and regenerated and then recycled into the working tank to meet the standards for reuse.
Vacuuming
Achieve vacuuming of air conditioning pipelines and equipment pipelines.
Leakage detection
The vehicle air conditioning pipeline can be leaking and the leak point can be located by adding UV detection liquid.
Refrigeration oil filling
Supports manual/automatic filling and realizes intelligent and precise filling through the built-in electronic scale.
Refrigerant filling
Add refrigerant to the vehicle according to the set filling amount.
Automatic mode
According to the set parameters, automatically perform cleaning, recovery, vacuuming, filling of refrigeration oil, and inject refrigerant and other operations.
Database
Equipped with automobile refrigerant model database, supports database calling, no manual setting is required.
Print
Supports printing of device execution results.
Power supply
AC110V/AC220V 50Hz/60Hz
Power
1000W
Working environment temperature
10~50℃
Display
10.1-inch touch screen
Oil bottles
4 (PAG, POE, UV, USED)
Electronic scales
5 (main tank, PAG, POE, UV, USED)
Electronic scale accuracy
10g
Compressor capacity
1/2HP
Vacuum pump capacity
dual-stage 128L/min
Working tank capacity
22kg
Filter handling capacity
120kg
Product size
1135mm(H)×660mm(D)×530mm(W)
Make Your Products Last Longer
Exchange dry filter: The dry filter must be exchanged when it reaches lifetime. If not exchange the dry-filter timely, it will not be able to run the recovery, flushing and supplying functions.
Clean pipe of the unit: After a period of use, such as 2 months, it should be run. It can clean up the pipe line of the machine.
Calibration of load cell: When the load cell is not precise, it needs to be calibrated.
Change vacuum pump oil: When the pump oil becomes cream or machine displays a maintenance message, the vacuum pump oil must be changed. If not change the pump oil in time, the vacuum pump will be easily damaged.
73,5 x 67 x 129,2 cm
135kg
